Meta-regression 通过假设混合效应模型来实现。由于抽样误差和研究之间的异质性，观察到的研究偏离了真实的总体效应。

普通最小二乘法的加权版本

meta 回归 使用一个或多个变量x来预测真实效应大小的差异。

\[ \hat\theta_k = \theta + \beta x_{k} + \epsilon_k+\zeta_k \]

抽样误差\(\epsilon_k\)和研究间异质性 \(\zeta_k\)

固定效应（\(\beta\)）和 随机效应（\(\zeta_k\)）

6.1 Meta回归模型

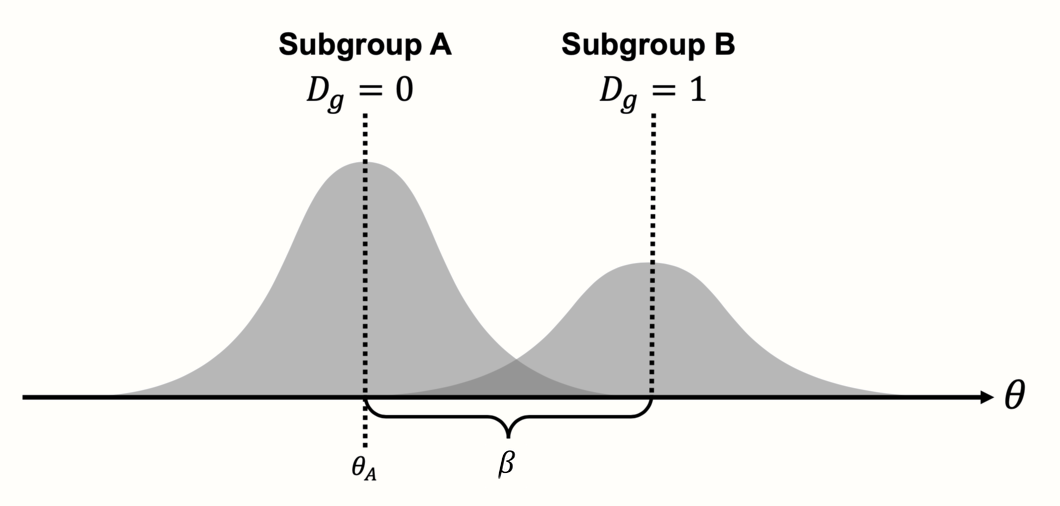

6.1.1 使用分类预测因子的meta回归

\[ \begin{equation} D_g=\begin{cases} 0: & \text{Subgroup A}\\ 1: & \text{Subgroup B.} \end{cases} \end{equation} \]

\[ \begin{equation} \hat\theta_k = \theta + \beta D_g +\epsilon_k+\zeta_k. \end{equation} \]

则

\[ \begin{equation} D_g=\begin{cases} 0: & \text{$\hat\theta_k = \theta_A + \epsilon_k+\zeta_k$}\\ 1: & \text{$\hat\theta_k = \theta_B + \theta_{\Delta} +\epsilon_k+\zeta_k$} \end{cases} \end{equation} \]

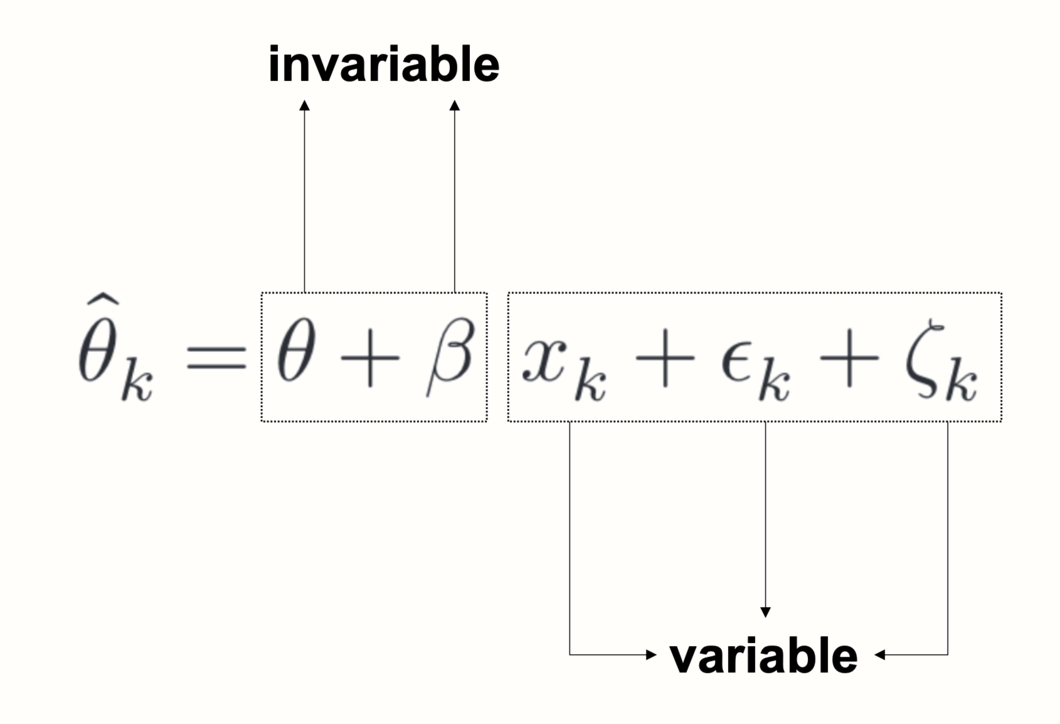

6.1.2 使用连续预测因子的meta回归

Show the code
library(meta)
m.gen <- metagen(TE = TE,
                 seTE = seTE,
                 studlab = Author,
                 data = dmetar::ThirdWave,
                 sm = "SMD",
                 fixed = FALSE,
                 random = TRUE,
                 method.tau = "REML",
                 method.random.ci = "HK",
                 prediction = T,
                 title = "Third Wave Psychotherapies")
summary(m.gen)
#> Review:     Third Wave Psychotherapies
#>
#>                           SMD            95%-CI %W(random)
#> Call et al.            0.7091 [ 0.1979; 1.2203]        5.0
#> Cavanagh et al.        0.3549 [-0.0300; 0.7397]        6.3
#> DanitzOrsillo          1.7912 [ 1.1139; 2.4685]        3.8
#> de Vibe et al.         0.1825 [-0.0484; 0.4133]        7.9
#> Frazier et al.         0.4219 [ 0.1380; 0.7057]        7.3
#> Frogeli et al.         0.6300 [ 0.2458; 1.0142]        6.3
#> Gallego et al.         0.7249 [ 0.2846; 1.1652]        5.7
#> Hazlett-Stevens & Oren 0.5287 [ 0.1162; 0.9412]        6.0
#> Hintz et al.           0.2840 [-0.0453; 0.6133]        6.9
#> Kang et al.            1.2751 [ 0.6142; 1.9360]        3.9
#> Kuhlmann et al.        0.1036 [-0.2781; 0.4853]        6.3
#> Lever Taylor et al.    0.3884 [-0.0639; 0.8407]        5.6
#> Phang et al.           0.5407 [ 0.0619; 1.0196]        5.3
#> Rasanen et al.         0.4262 [-0.0794; 0.9317]        5.1
#> Ratanasiripong         0.5154 [-0.1731; 1.2039]        3.7
#> Shapiro et al.         1.4797 [ 0.8618; 2.0977]        4.2
#> Song & Lindquist       0.6126 [ 0.1683; 1.0569]        5.7
#> Warnecke et al.        0.6000 [ 0.1120; 1.0880]        5.2
#>
#> Number of studies: k = 18
#>
#>                              SMD            95%-CI    t  p-value
#> Random effects model (HK) 0.5771 [ 0.3782; 0.7760] 6.12 < 0.0001
#> Prediction interval              [-0.0542; 1.2084]
#>
#> Quantifying heterogeneity (with 95%-CIs):
#>  tau^2 = 0.0820 [0.0295; 0.3533]; tau = 0.2863 [0.1717; 0.5944]
#>  I^2 = 62.6% [37.9%; 77.5%]; H = 1.64 [1.27; 2.11]
#>
#> Test of heterogeneity:
#>      Q d.f. p-value
#>  45.50   17  0.0002
#>
#> Details of meta-analysis methods:
#> - Inverse variance method
#> - Restricted maximum-likelihood estimator for tau^2
#> - Q-Profile method for confidence interval of tau^2 and tau
#> - Calculation of I^2 based on Q
#> - Hartung-Knapp adjustment for random effects model (df = 17)
#> - Prediction interval based on t-distribution (df = 17)
Show the code
year <- c(2014, 1998, 2010, 1999, 2005, 2014,
          2019, 2010, 1982, 2020, 1978, 2001,
          2018, 2002, 2009, 2011, 2011, 2013)

m.gen.reg <- metareg(m.gen, ~year)
m.gen.reg
#>
#> Mixed-Effects Model (k = 18; tau^2 estimator: REML)
#>
#> tau^2 (estimated amount of residual heterogeneity):     0.0188 (SE = 0.0226)
#> tau (square root of estimated tau^2 value):             0.1371
#> I^2 (residual heterogeneity / unaccounted variability): 29.26%
#> H^2 (unaccounted variability / sampling variability):   1.41
#> R^2 (amount of heterogeneity accounted for):            77.08%
#>
#> Test for Residual Heterogeneity:
#> QE(df = 16) = 27.8273, p-val = 0.0332
#>
#> Test of Moderators (coefficient 2):
#> F(df1 = 1, df2 = 16) = 9.3755, p-val = 0.0075
#>
#> Model Results:
#>
#>          estimate       se     tval  df    pval     ci.lb     ci.ub
#> intrcpt  -36.1546  11.9800  -3.0179  16  0.0082  -61.5510  -10.7582  **
#> year       0.0183   0.0060   3.0619  16  0.0075    0.0056    0.0310  **
#>
#> ---
#> Signif. codes:  0 '***' 0.001 '**' 0.01 '*' 0.05 '.' 0.1 ' ' 1

\(\hat\tau^2_{\text{unexplained}}=\) 0.0188

\(R^2_*\) =77.08% 意味着真实效应大小的 77% 的差异可以用出版年份来解释，这是一个相当大的值。

Show the code

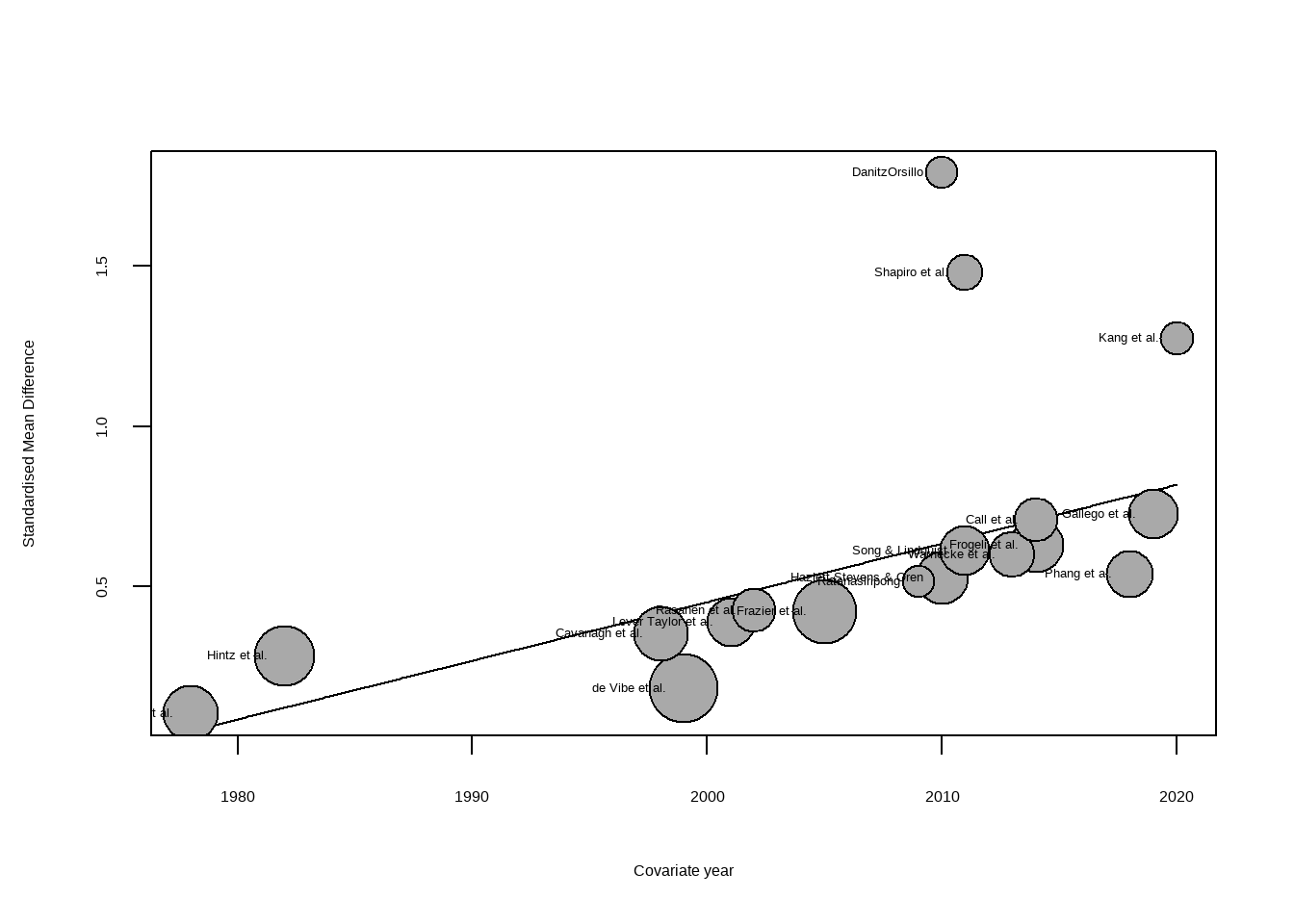

bubble(m.gen.reg, studlab = TRUE)

Show the code
# 通过meta回归进行亚组分析
metareg(m.gen, RiskOfBias)
#>
#> Mixed-Effects Model (k = 18; tau^2 estimator: REML)
#>
#> tau^2 (estimated amount of residual heterogeneity):     0.0691 (SE = 0.0424)
#> tau (square root of estimated tau^2 value):             0.2630
#> I^2 (residual heterogeneity / unaccounted variability): 60.58%
#> H^2 (unaccounted variability / sampling variability):   2.54
#> R^2 (amount of heterogeneity accounted for):            15.66%
#>
#> Test for Residual Heterogeneity:
#> QE(df = 16) = 39.3084, p-val = 0.0010
#>
#> Test of Moderators (coefficient 2):
#> F(df1 = 1, df2 = 16) = 2.5066, p-val = 0.1329
#>
#> Model Results:
#>
#>                estimate      se     tval  df    pval    ci.lb   ci.ub
#> intrcpt          0.7691  0.1537   5.0022  16  0.0001   0.4431  1.0950  ***
#> RiskOfBiaslow   -0.2992  0.1890  -1.5832  16  0.1329  -0.6999  0.1014
#>
#> ---
#> Signif. codes:  0 '***' 0.001 '**' 0.01 '*' 0.05 '.' 0.1 ' ' 1

RiskOfBiaslow 效应大小 g = 0.7691-0.2992 ≈0.4699

6.2 多元回归

\[ \begin{equation} \hat \theta_k = \theta + \beta_1x_{1k} + ... + \beta_nx_{nk} + \epsilon_k + \zeta_k \tag{multiple-metareg} \end{equation} \]

Show the code
library(metafor)
library(tidyverse)
library(dmetar)
data(MVRegressionData)
glimpse(MVRegressionData)
#> Rows: 36
#> Columns: 6
#> $ yi         <dbl> 0.09437543, 0.09981923, 0.16931607, 0.17511107, 0.27301641,…
#> $ sei        <dbl> 0.1959031, 0.1918510, 0.1193179, 0.1161592, 0.1646946, 0.17…
#> $ reputation <dbl> -11, 0, -11, 4, -10, -9, -8, -8, -8, 0, -5, -5, -4, -4, -3,…
#> $ quality    <dbl> 6, 9, 5, 9, 2, 10, 6, 3, 10, 3, 1, 5, 10, 2, 1, 2, 4, 1, 8,…
#> $ pubyear    <dbl> -0.85475360, -0.75277184, -0.66048349, -0.56304843, -0.4308…
#> $ continent  <fct> 1, 0, 1, 0, 1, 0, 0, 0, 0, 0, 0, 1, 0, 0, 0, 0, 0, 0, 0, 1,…

6.2.1 多重共线性

Show the code
MVRegressionData[,c("reputation", "quality", "pubyear")] %>%
    cor()
#>            reputation    quality    pubyear
#> reputation  1.0000000  0.3015694  0.3346594
#> quality     0.3015694  1.0000000 -0.1551123
#> pubyear     0.3346594 -0.1551123  1.0000000
Show the code
m.qual <- rma(yi = yi,
              sei = sei,
              data = MVRegressionData,
              method = "ML",
              mods = ~ quality,
              test = "knha")

m.qual
#>
#> Mixed-Effects Model (k = 36; tau^2 estimator: ML)
#>
#> tau^2 (estimated amount of residual heterogeneity):     0.0667 (SE = 0.0275)
#> tau (square root of estimated tau^2 value):             0.2583
#> I^2 (residual heterogeneity / unaccounted variability): 60.04%
#> H^2 (unaccounted variability / sampling variability):   2.50
#> R^2 (amount of heterogeneity accounted for):            7.37%
#>
#> Test for Residual Heterogeneity:
#> QE(df = 34) = 88.6130, p-val < .0001
#>
#> Test of Moderators (coefficient 2):
#> F(df1 = 1, df2 = 34) = 3.5330, p-val = 0.0688
#>
#> Model Results:
#>
#>          estimate      se    tval  df    pval    ci.lb   ci.ub
#> intrcpt    0.3429  0.1354  2.5318  34  0.0161   0.0677  0.6181  *
#> quality    0.0356  0.0189  1.8796  34  0.0688  -0.0029  0.0740  .
#>
#> ---
#> Signif. codes:  0 '***' 0.001 '**' 0.01 '*' 0.05 '.' 0.1 ' ' 1
Show the code
m.qual.rep <- rma(yi = yi,
                  sei = sei,
                  data = MVRegressionData,
                  method = "ML",
                  mods = ~ quality + reputation,
                  test = "knha")

m.qual.rep
#>
#> Mixed-Effects Model (k = 36; tau^2 estimator: ML)
#>
#> tau^2 (estimated amount of residual heterogeneity):     0.0238 (SE = 0.0161)
#> tau (square root of estimated tau^2 value):             0.1543
#> I^2 (residual heterogeneity / unaccounted variability): 34.62%
#> H^2 (unaccounted variability / sampling variability):   1.53
#> R^2 (amount of heterogeneity accounted for):            66.95%
#>
#> Test for Residual Heterogeneity:
#> QE(df = 33) = 58.3042, p-val = 0.0042
#>
#> Test of Moderators (coefficients 2:3):
#> F(df1 = 2, df2 = 33) = 12.2476, p-val = 0.0001
#>
#> Model Results:
#>
#>             estimate      se    tval  df    pval    ci.lb   ci.ub
#> intrcpt       0.5005  0.1090  4.5927  33  <.0001   0.2788  0.7222  ***
#> quality       0.0110  0.0151  0.7312  33  0.4698  -0.0197  0.0417
#> reputation    0.0343  0.0075  4.5435  33  <.0001   0.0189  0.0496  ***
#>
#> ---
#> Signif. codes:  0 '***' 0.001 '**' 0.01 '*' 0.05 '.' 0.1 ' ' 1
Show the code
anova(m.qual, m.qual.rep)
#>
#>         df     AIC     BIC    AICc   logLik     LRT   pval      QE  tau^2
#> Full     4 19.4816 25.8157 20.7720  -5.7408                58.3042 0.0238
#> Reduced  3 36.9808 41.7314 37.7308 -15.4904 19.4992 <.0001 88.6130 0.0667
#>              R^2
#> Full
#> Reduced 64.3197%

anova LRT X2= 19.4992 ,p<0.001

6.2.2 交互效应

Show the code
# Add factor labels to 'continent'
# 0 = Europe
# 1 = North America
levels(MVRegressionData$continent) = c("Europe", "North America")

# Fit the meta-regression model
m.qual.rep.int <- rma(yi = yi,
                      sei = sei,
                      data = MVRegressionData,
                      method = "REML",
                      mods = ~ pubyear * continent,
                      test = "knha")

m.qual.rep.int
#>
#> Mixed-Effects Model (k = 36; tau^2 estimator: REML)
#>
#> tau^2 (estimated amount of residual heterogeneity):     0 (SE = 0.0098)
#> tau (square root of estimated tau^2 value):             0
#> I^2 (residual heterogeneity / unaccounted variability): 0.00%
#> H^2 (unaccounted variability / sampling variability):   1.00
#> R^2 (amount of heterogeneity accounted for):            100.00%
#>
#> Test for Residual Heterogeneity:
#> QE(df = 32) = 24.8408, p-val = 0.8124
#>
#> Test of Moderators (coefficients 2:4):
#> F(df1 = 3, df2 = 32) = 28.7778, p-val < .0001
#>
#> Model Results:
#>
#>                                 estimate      se    tval  df    pval    ci.lb
#> intrcpt                           0.3892  0.0421  9.2472  32  <.0001   0.3035
#> pubyear                           0.1683  0.0834  2.0184  32  0.0520  -0.0015
#> continentNorth America            0.3986  0.0658  6.0539  32  <.0001   0.2645
#> pubyear:continentNorth America    0.6323  0.1271  4.9754  32  <.0001   0.3734
#>                                  ci.ub
#> intrcpt                         0.4750  ***
#> pubyear                         0.3380    .
#> continentNorth America          0.5327  ***
#> pubyear:continentNorth America  0.8911  ***
#>
#> ---
#> Signif. codes:  0 '***' 0.001 '**' 0.01 '*' 0.05 '.' 0.1 ' ' 1

6.2.3 过拟合

\(R^2_*\) = 100% ，在实践中，几乎不会解释数据中的所有异质性——事实上，如果在现实生活中的数据中找到这样的结果，这可能是模型过度拟合了。

6.2.4 排列测试

Show the code
permutest(m.qual.rep)
#> Running 1000 iterations for an approximate permutation test.
#>
#> Test of Moderators (coefficients 2:3):¹
#> F(df1 = 2, df2 = 33) = 12.2476, p-val = 0.0010
#>
#> Model Results:
#>
#>             estimate      se    tval  df    pval¹    ci.lb   ci.ub
#> intrcpt       0.5005  0.1090  4.5927  33  0.1990    0.2788  0.7222
#> quality       0.0110  0.0151  0.7312  33  0.4460   -0.0197  0.0417
#> reputation    0.0343  0.0075  4.5435  33  0.0010    0.0189  0.0496  ***
#>
#> ---
#> Signif. codes:  0 '***' 0.001 '**' 0.01 '*' 0.05 '.' 0.1 ' ' 1
#>
#> 1) p-values based on permutation testing

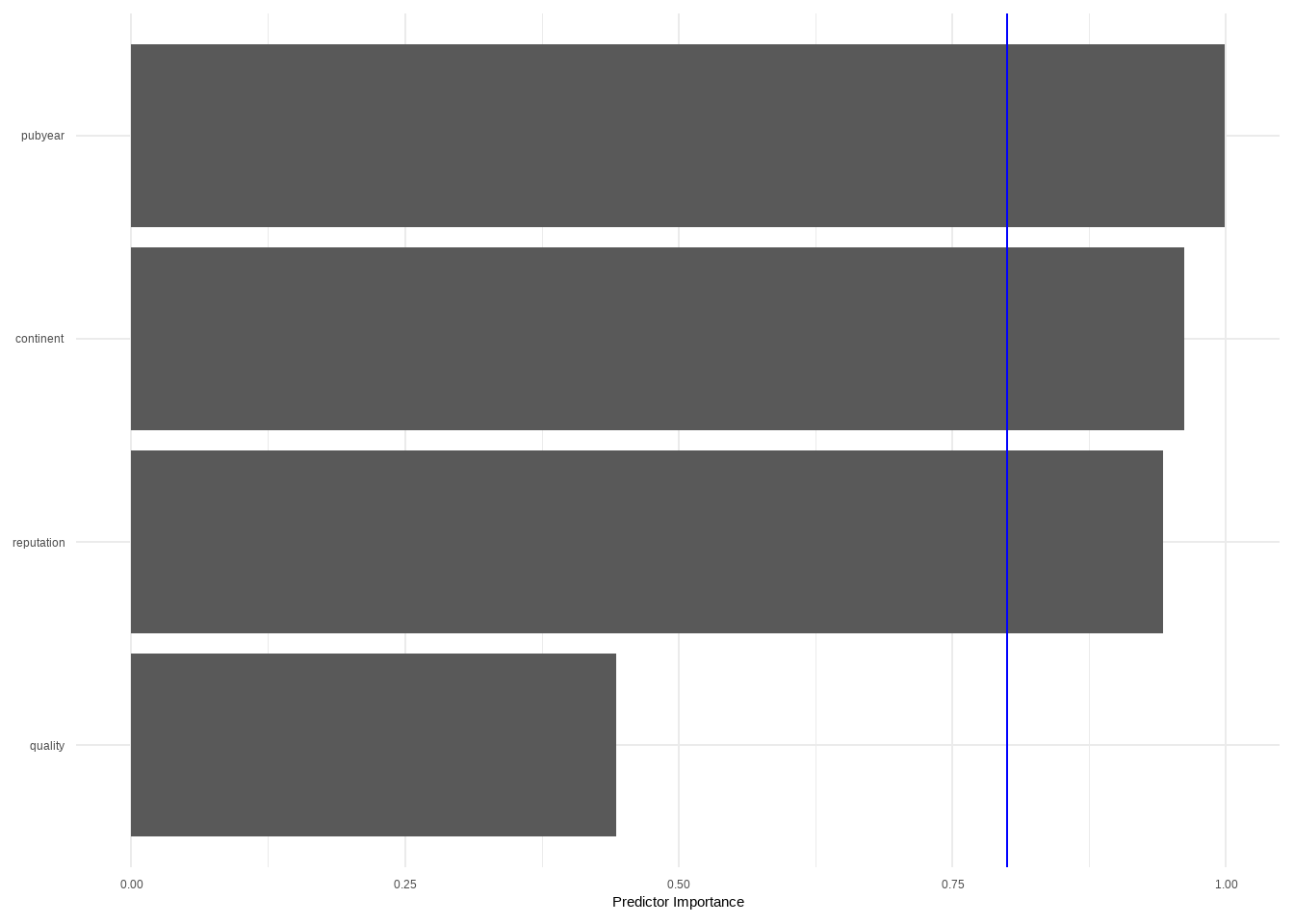

6.2.5 多模型推理

Show the code
multimodel.inference(TE = "yi",
                     seTE = "sei",
                     data = MVRegressionData,
                     predictors = c("pubyear", "quality",
                                    "reputation", "continent"),
                     interaction = FALSE)
#>
  |
  |                                                                      |   0%
  |
  |====                                                                  |   6%
  |
  |=========                                                             |  12%
  |
  |=============                                                         |  19%
  |
  |==================                                                    |  25%
  |
  |======================                                                |  31%
  |
  |==========================                                            |  38%
  |
  |===============================                                       |  44%
  |
  |===================================                                   |  50%
  |
  |=======================================                               |  56%
  |
  |============================================                          |  62%
  |
  |================================================                      |  69%
  |
  |====================================================                  |  75%
  |
  |=========================================================             |  81%
  |
  |=============================================================         |  88%
  |
  |==================================================================    |  94%
#>
#>
#> Multimodel Inference: Final Results
#> --------------------------
#>
#>  - Number of fitted models: 16
#>  - Full formula: ~ pubyear + quality + reputation + continent
#>  - Coefficient significance test: knha
#>  - Interactions modeled: no
#>  - Evaluation criterion: AICc
#>
#>
#> Best 5 Models
#> --------------------------
#>
#>
#> Global model call: metafor::rma(yi = TE, sei = seTE, mods = form, data = glm.data,
#>     method = method, test = test)
#> ---
#> Model selection table
#>    (Intrc) cntnn  pubyr   qulty   rpttn df logLik AICc delta weight
#> 12       +     + 0.3533         0.02160  5  2.981  6.0  0.00  0.536
#> 16       +     + 0.4028 0.02210 0.01754  6  4.071  6.8  0.72  0.375
#> 8        +     + 0.4948 0.03574          5  0.646 10.7  4.67  0.052
#> 11       +       0.2957         0.02725  4 -1.750 12.8  6.75  0.018
#> 15       +       0.3547 0.02666 0.02296  5 -0.395 12.8  6.75  0.018
#> Models ranked by AICc(x)
#>
#>
#> Multimodel Inference Coefficients
#> --------------------------
#>
#>
#>                          Estimate  Std. Error   z value  Pr(>|z|)
#> intrcpt                0.38614661 0.106983583 3.6094006 0.0003069
#> continentNorth America 0.24743836 0.083113174 2.9771256 0.0029096
#> pubyear                0.37816796 0.083045572 4.5537402 0.0000053
#> reputation             0.01899347 0.007420427 2.5596198 0.0104787
#> quality                0.01060060 0.014321158 0.7402055 0.4591753
#>
#>
#> Predictor Importance
#> --------------------------
#>
#>
#>        model importance
#> 1    pubyear  0.9988339
#> 2  continent  0.9621839
#> 3 reputation  0.9428750
#> 4    quality  0.4432826
